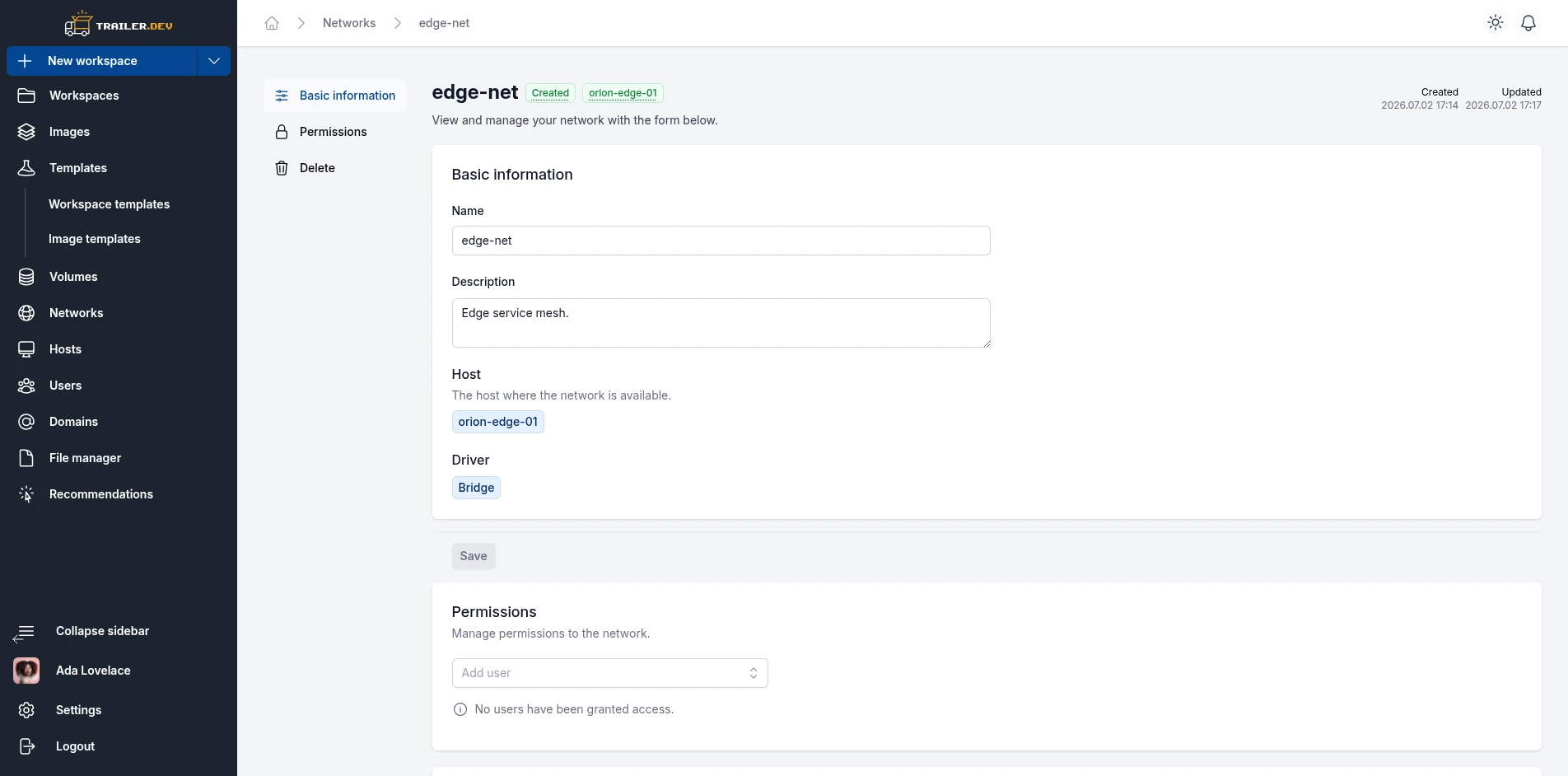

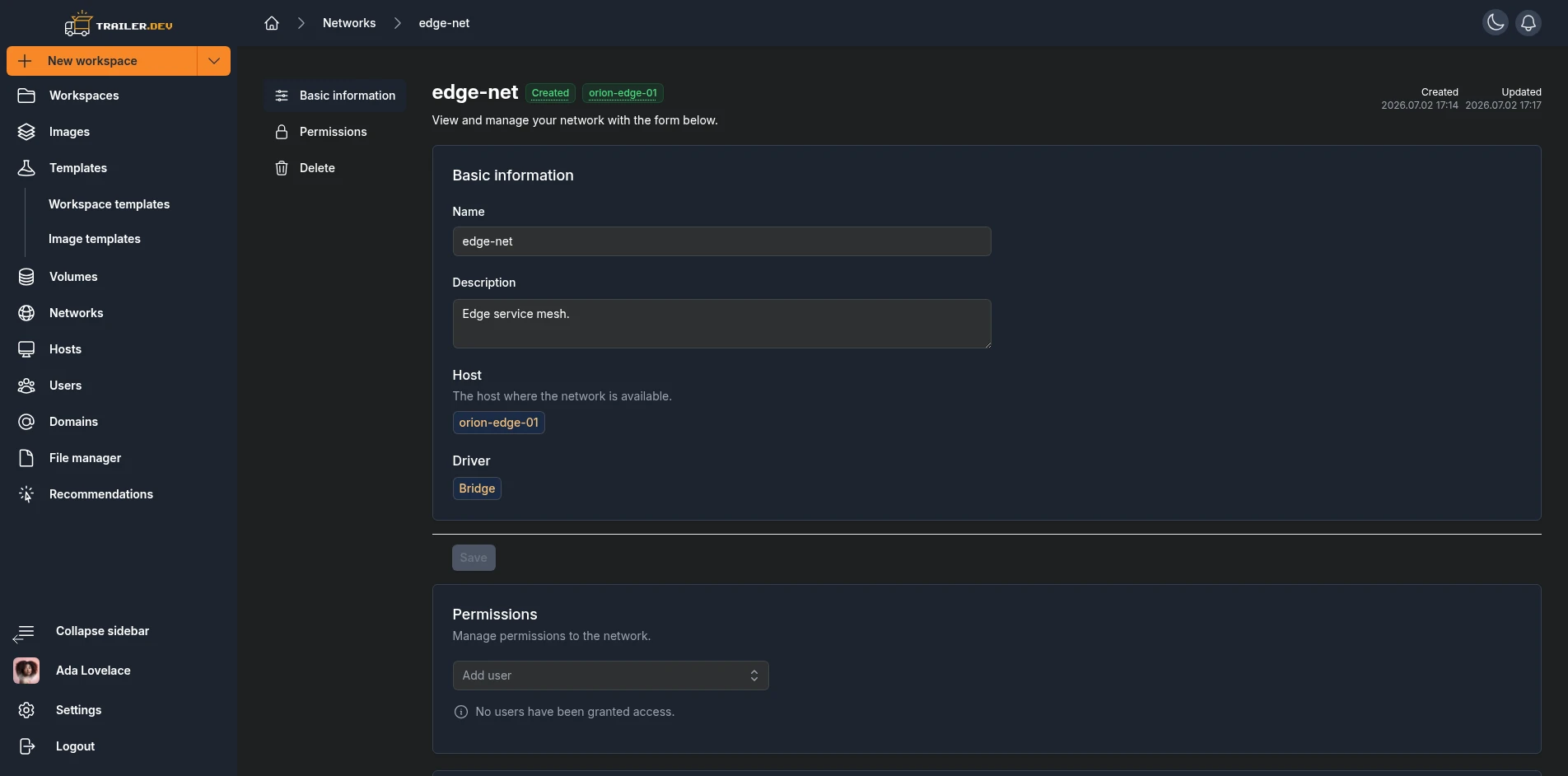

Network Details
View and manage a single network. The header shows the network name and a live status indicator that updates as the agent reconciles the network. If the network has a reconciliation message, a Messages section appears at the top.
Basic information
Section titled “Basic information”Editable fields:
- Name
- Description
Read-only fields:
- Host: shown as a link to the host.
- Driver:
BridgeorMacvlan. - For macvlan networks: Parent interface, Subnet, Gateway, and IP range (shown only when set).
Saving is enabled once a field changes.
Permissions
Section titled “Permissions”Manage who can access the network. Each user row carries three flags:
- Attach: attach the network to a workspace.
- Modify: edit the network.
- Delete: remove the network.
See Permissions and access control for the full model.
Delete
Section titled “Delete”Delete the network from a confirmation form. You must type the network name to confirm. The section is shown only when you hold delete permission.
